TSL-2 Programmer Instructions

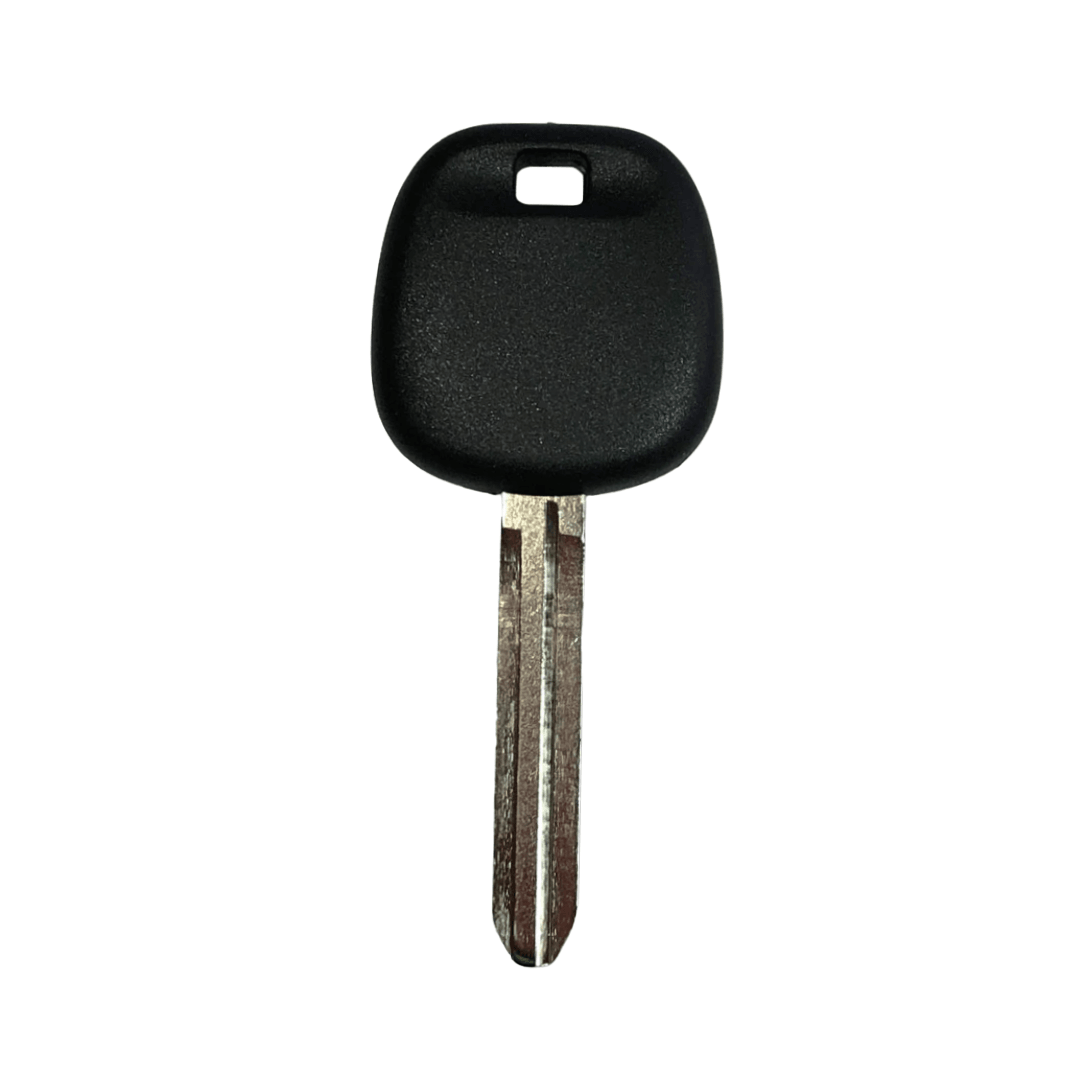

Transponder Key Programming Instructions
- Having an existing “master key” is important in order to program a new spare. Find out if you have a master key or valet key. Click HERE
- The key chip marking (Dot, G or H) on the blade of the old and new key should match.
- The purpose of including the phone is that we already have the app downloaded, installed, Bluetooth paired, and the Activation complete. So there is no need to do the activation if you are using the pre-loaded phone.
- Be Careful. Pressing the wrong buttons in the app can mess up your vehicle’s ECU. You’re responsible for your own actions.
Tom's Car Key Programmer - 2nd Generation (Turn Key Start Vehicles)
Make a Spare Key & Fob for Toyota Vehicles [Lexus & Scion Too!]
Email us at help@tomskey.com and let’s see how we can help you.
The pre-loaded phone has been bluetooth paired and activation complete. Click Immobilization in the app and see if it works.
4 to 5 transponder keys (varies by vehicle).
TSL-2 can erase lost/existing keys except for the key in the ignition. Watch the video demonstration on how to.
The security light and the way it blinks can give you some insight into diagnosing a problem.
If the light blinks every 2 seconds = It is operating normally
If the light blinks twice quickly and followed with 1 blink a half-second later = Key programming has failed
If the light blinks twice quickly and followed by 2 more blinks a half-second later = Key is already programmed
If the light blinks twice quickly and followed with 3 more blinks a half-second later = Maximum amount of keys are already programmed
The security light will stop blinking when you slide in the new programmed key in the ignition.

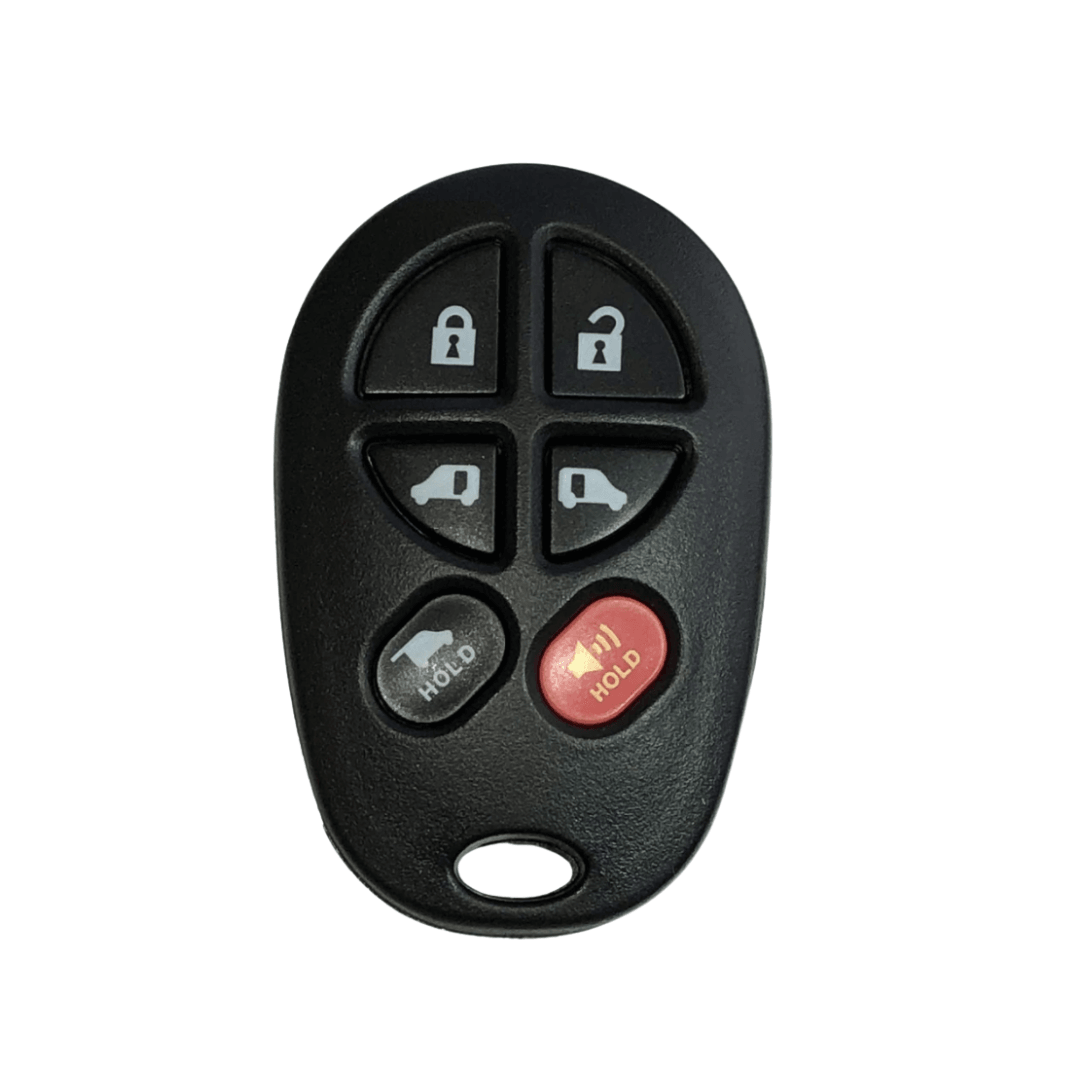

Remote Fob Programming Instructions
- You must have at least one working key to program new remote fobs.
- Your vehicle must have the standard remote keyless entry feature from the manufacturer.
- This will not add remote features that your vehicle did not originally have.
- A fresh/new battery in the remote fob is a must while programming. If the battery is dead or weak, we can definitely send a new one.
- The purpose of including the phone is that we already have the app downloaded, installed, Bluetooth paired, and the Activation complete. So there is no need to do the activation if you are using the pre-loaded phone.
- Be Careful. Pressing the wrong buttons in the app can mess up your vehicle’s ECU. You’re responsible for your own actions.
Tom's Car Key Programmer - 2nd Generation (Turn Key Start Vehicles)
Make a Spare Key & Fob for Toyota Vehicles [Lexus & Scion Too!]
You will still be able to erase and program new remote fobs to your vehicle.
You don’t need a working remote to program a new one. Just be certain that the problem is not within the vehicle’s anti-theft system or door mechanism.
Yes, the remote erasing procedure requires a working remote.
The pre-loaded phone has been bluetooth paired and activation complete. Click Immobilization in the app and see if it works.
Make sure the battery in the remote fob is not dead. Repeat the lock+unlock then lock cycle 3 to 5 times until the vehicle beeps.
After the remote programming procedure, remove the key from the ignition and close the doors. Press any buttons on the new remote and see if it works. If it doesn’t, reinstall the programmer and repeat the process.

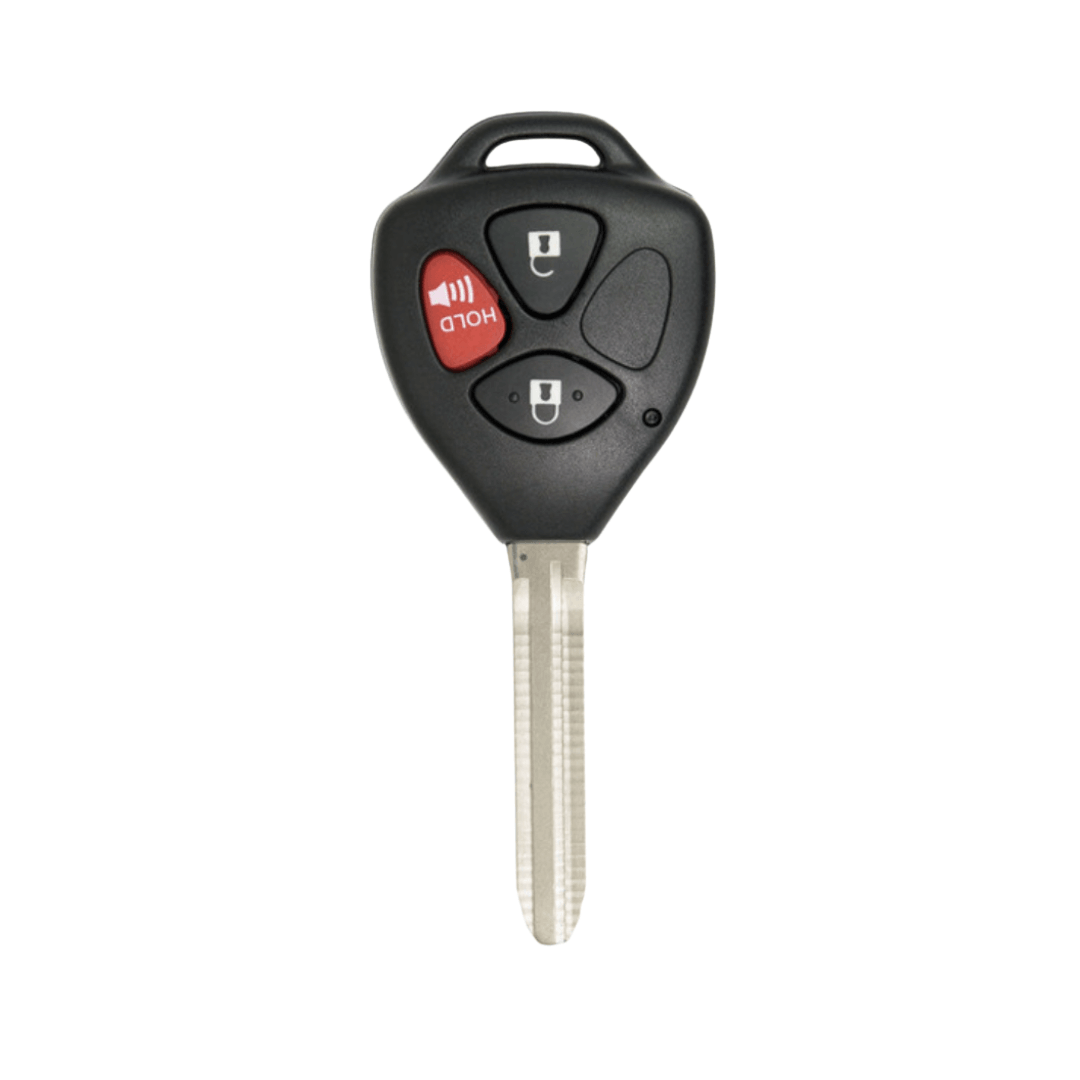

Remote Head Key Programming Instructions
- Programming the combo/remote head key has two parts. The first is programming the key chip to start the vehicle and the second is the remote buttons.
- Having an existing “master key” is important in order to program a new spare. Find out if you have a master key or valet key. Click HERE
- The key chip marking (Dot, G or H) on the blade of the old and new key should match.
- A fresh/new battery in the remote head is a must while programming. If the battery is dead or weak, we can definitely send a new one.
- This will not add remote features that your vehicle did not originally have.
- The purpose of including the phone is that we already have the app downloaded, installed, Bluetooth paired, and the Activation complete. So there is no need to do the activation if you are using the pre-loaded phone.
- Be Careful. Pressing the wrong buttons in the app can mess up your vehicle’s ECU. You’re responsible for your own actions.
Tom's Car Key Programmer - 2nd Generation (Turn Key Start Vehicles)
Make a Spare Key & Fob for Toyota Vehicles [Lexus & Scion Too!]
You will still be able to erase and program new remote fobs to your vehicle.
You don’t need a working remote to program a new one. Just be certain that the problem is not within the vehicle’s anti-theft system or door mechanism.
Yes, the remote erasing procedure requires a working remote.
The pre-loaded phone has been bluetooth paired and activation complete. Click Immobilization in the app and see if it works.
Make sure the battery in the remote fob is not dead. Repeat the lock+unlock then lock cycle 3 to 5 times until the vehicle beeps.
After the remote programming procedure, remove the key from the ignition and close the doors. Press any buttons on the new remote and see if it works. If it doesn’t, reinstall the programmer and repeat the process.

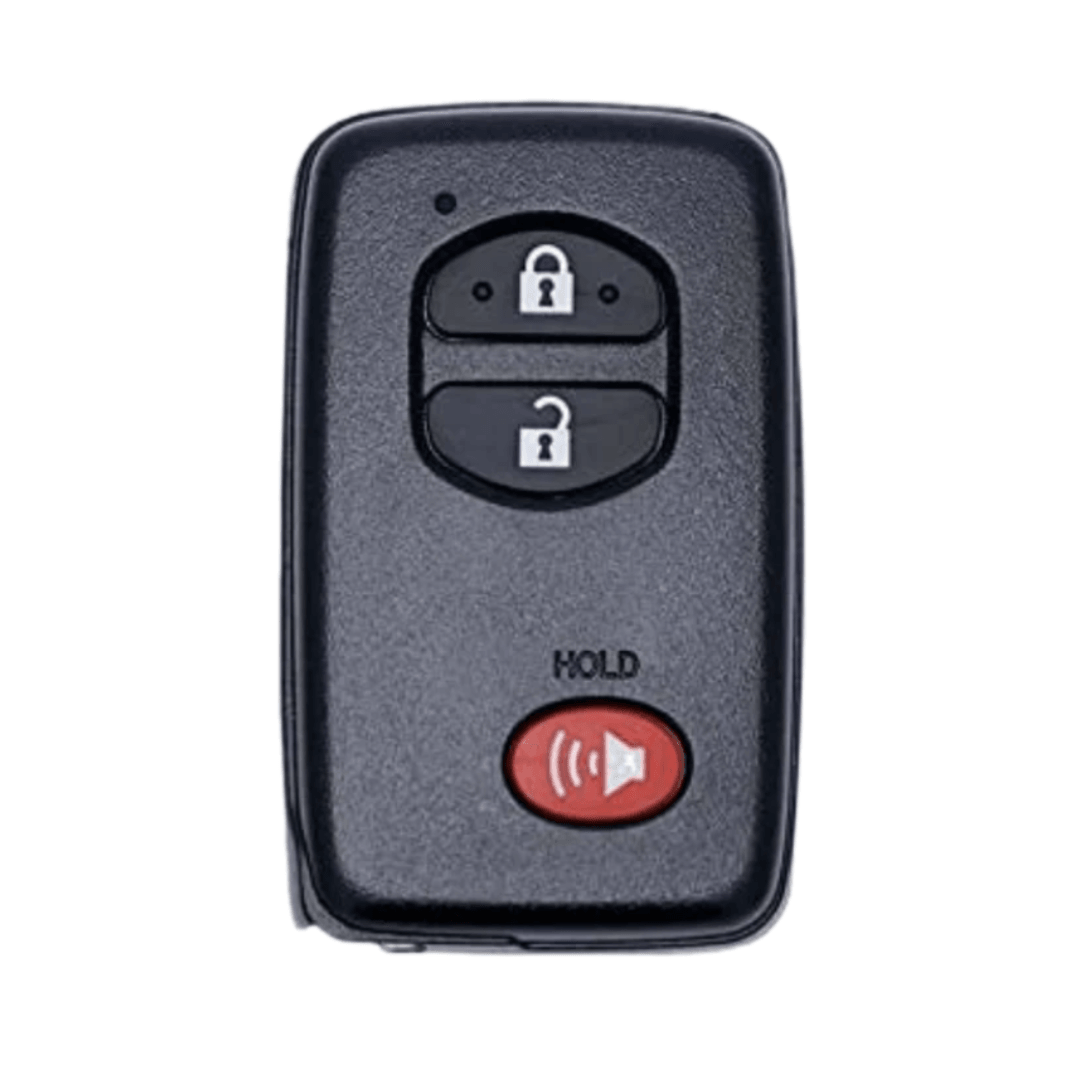

Toyota Smart Key Fob Instructions
- You must have at least one working smart key fob to program new ones.
- Avalon, Camry, RAV4, Tacoma, and Prius were manufactured with multiple fob options. On these vehicles, confirm that the fob FCC ID/part number, circuit board number, shape and remote buttons are identical to your original smart key as shown. Click HERE for the video demonstration.
- This will not add remote features that your vehicle did not originally have.
- A fresh/new battery in the fob is a must while programming. If the battery is dead or weak, we can definitely send a new one.
- The purpose of including the phone is that we already have the app downloaded, installed, Bluetooth paired, and the Activation complete. So there is no need to do the activation if you are using the pre-loaded phone.
- Be Careful. Pressing the wrong buttons in the app can mess up your vehicle’s ECU. You’re responsible for your own actions.
Program Toyota Smart Key Fob Yourself [Push Button Start Vehicles]
Program Toyota Fob Push-button Start (Lexus and Scion too!)
The pre-loaded phone has been Bluetooth paired and activation complete. Click Immobilization in the app and see if it works.
Connect the phone to WiFi, press“Activation”, then reactivate the programmer.
Yes, this will prevent any smart key fobs not in your possession from opening and starting your vehicle. This also helps to refresh the vehicle’s memory and accept new keys.
Instructions have timing requirements. If you wait too long between steps, your vehicle’s computer may time out, requiring you to start over. Once you begin the pairing procedure, move at a quick and even pace.
Check the battery in the new fob. Hold the new fob with the buttons facing you and move it around the start button.
Most likely, the old smart key was held on the start button twice. Make sure to remove the old key after the initial beep. Also, check the battery and compatibility of the new fob.

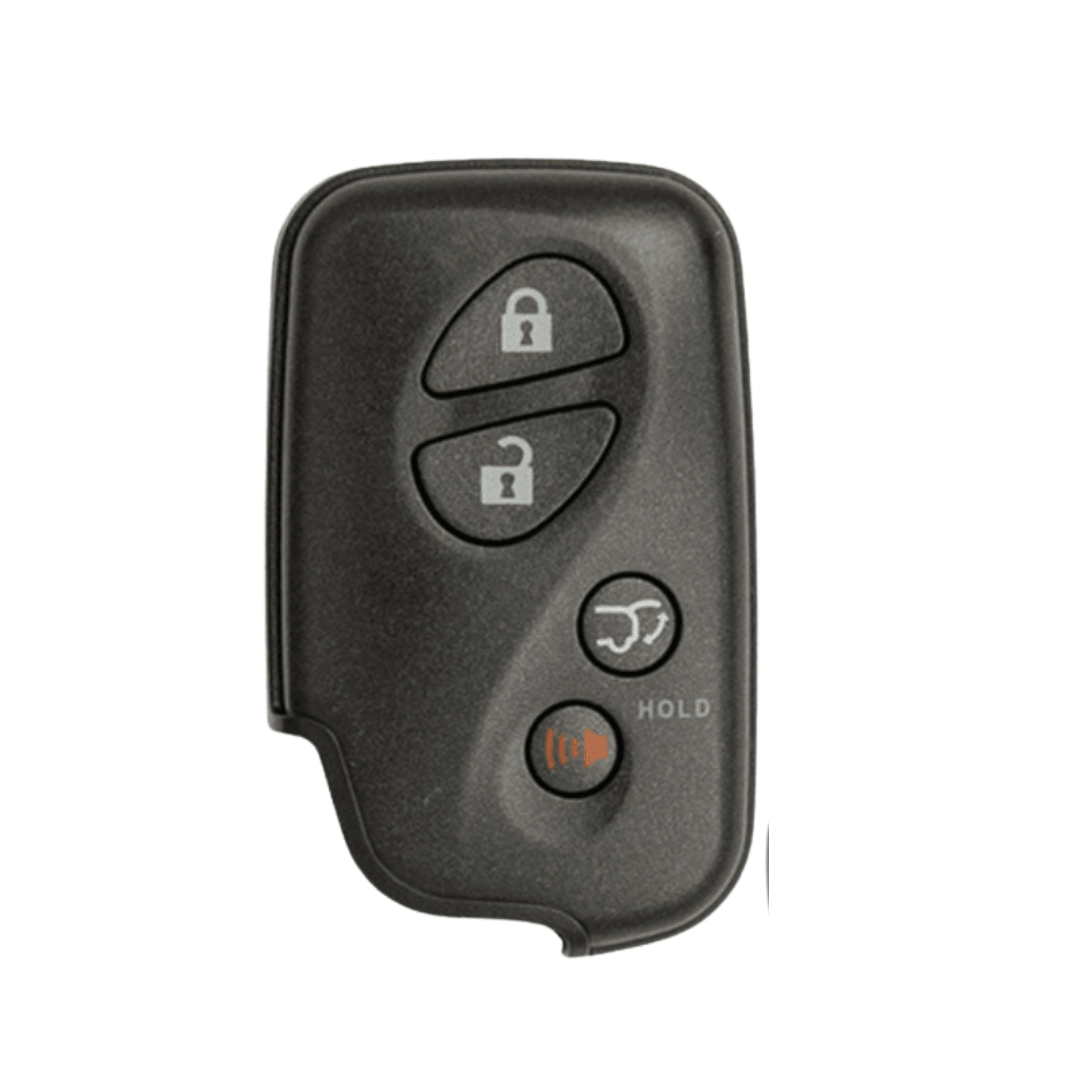

Lexus Smart Key Fob Instructions
- You must have at least one working smart key fob to program new ones.
- Lexus vehicles were manufactured with multiple fob options. On these vehicles, confirm that the fob FCC ID/part number, circuit board number, shape and remote buttons are identical to your original smart key as shown. Click HERE for the video demonstration.
- This will not add remote features that your vehicle did not originally have.
- A fresh/new battery in the fob is a must while programming. If the battery is dead or weak, we can definitely send a new one.
- The purpose of including the phone is that we already have the app downloaded, installed, Bluetooth paired, and the Activation complete. So there is no need to do the activation if you are using the pre-loaded phone.
- Be Careful. Pressing the wrong buttons in the app can mess up your vehicle’s ECU. You’re responsible for your own actions.
Program Toyota Smart Key Fob Yourself [Push Button Start Vehicles]
Program Toyota Fob Push-button Start (Lexus and Scion too!)
Email us at help@tomskey.com and let’s see how we can help you.
The pre-loaded phone has been bluetooth paired and activation complete. Click Immobilization in the app and see if it works.
TSL-2 can erase lost/existing keys except for the key in the ignition. Watch the video demonstration on how to.
The security light and the way it blinks can give you some insight into diagnosing a problem.
If the light blinks every 2 seconds = It is operating normally
If the light blinks twice quickly and followed with 1 blink a half-second later = Key programming has failed
If the light blinks twice quickly and followed by 2 more blinks a half-second later = Key is already programmed
If the light blinks twice quickly and followed with 3 more blinks a half-second later = Maximum amount of keys are already programmed
The security light will stop blinking when you slide in the new programmed key in the ignition.
The pre-loaded phone has been Bluetooth paired and activation complete. Click Immobilization in the app and see if it works.
Connect the phone to WiFi, press“Activation”, then reactivate the programmer.
Yes, this will prevent any smart key fobs not in your possession from opening and starting your vehicle. This also helps to refresh the vehicle’s memory and accept new keys.
Instructions have timing requirements. If you wait too long between steps, your vehicle’s computer may time out, requiring you to start over. Once you begin the pairing procedure, move at a quick and even pace.
Check the battery in the new fob. Hold the new fob with the buttons facing you and move it around the start button.
Most likely, the old smart key was held on the start button twice. Make sure to remove the old key after the initial beep. Also, check the battery and compatibility of the new fob.
